Hikmicro LYNX 3.0 LH19

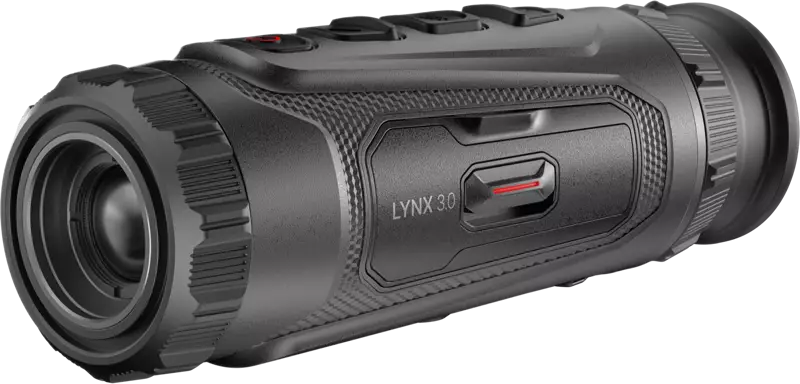

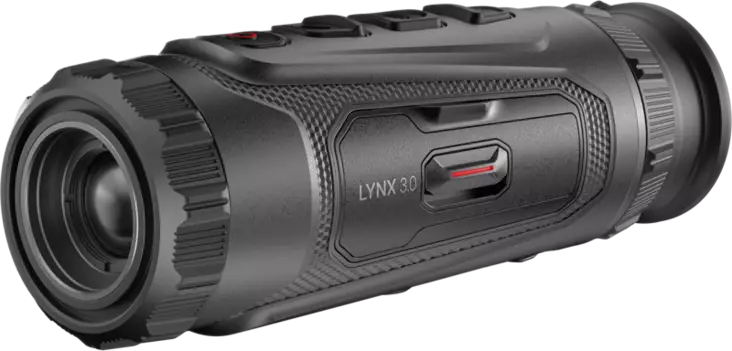

Hikmicro Lynx LH19 3.0 Thermal Camera

The LH19 3.0 features an extremely sensitive thermal module with a 384×288 sensor combined with a 19 mm f/1.0 lens. This configuration provides a base magnification of 1.9x and a field of view of 13.8° (24.2 m at 100 m distance), allowing effective observation up to 900 meters. The system's NETD classification exceeds 15 mK at 25 °C, ensuring clear temperature differentiation even in challenging conditions.

Advanced Image Processing

The Lynx 3.0 includes HIKMICRO's patented shutterless imaging system (HSIS), which eliminates image interruptions during calibration for seamless observation. Image quality is further enhanced by AI-powered Image Pro 3.0 and Zoom Pro algorithms, optimizing thermal image clarity and detail retention across the entire magnification range.

Display and Operation

The integrated 0.49-inch AMOLED display shows thermal images at a resolution of 1920×1080, providing sharp and contrast-rich viewing through the eyepiece. The replaceable 18650 battery allows for up to 4.5 hours of continuous operation at -20 °C, ensuring reliable performance in long-term field use.

Compact Size

Weighing only 331 grams, the LH19 3.0 is designed to be pocket-friendly without compromising functionality. The combination of shutterless operation, extended battery life, and weather-resistant construction makes it an ideal companion for demanding outdoor conditions where both portability and performance are crucial.

Key Specifications
Uncooled VOx thermal sensor with a resolution of 384×288 and a 12µm pixel pitch produces high-definition thermal imaging at a frame rate of 50 Hz, operating in the 8-14µm wavelength range for optimal atmospheric penetration.

The 19mm f/1.0 germanium lens delivers a base magnification of 1.9x, which can be expanded up to 15.2x (8x digital zoom), with a manual focus ring allowing adjustments from a minimum focus distance of 3 meters to a 900-meter observation range.

AMOLED display technology features a 0.49-inch 1920×1080 resolution viewfinder with adjustable diopter correction (-5D to +3D), a 6 mm exit pupil, and a 20 mm eye relief for comfortable extended viewing.

Versatile thermal palette options include Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome modes with adjustable brightness, contrast, and hue settings (Cold/Warm) for optimal target identification.

The HIKMICRO Shutterless Imaging System (HSIS) eliminates calibration interruptions while Image Pro 3.0 and Zoom Pro algorithms enhance image quality and detail retention across the entire magnification range.

Accurate thermal sensitivity reaches a NETD value of less than 15mK (@25°C, F/1.0) providing a broad 13.8°×8.4° field of view (24.2m × 14.7m at 100m distance).

Features:

• Pixel pitch: 12 µm

• Thermal sensor sensitivity: Under 15mK

• Refresh rate: 50 Hz

• Image and video recording

• IP67 rated

• Wi-Fi capability

• Internal storage: 64 GB EMMC

• Thermal sensor resolution: 384x288

• Focal length: 19 mm, F1.0

• Magnification: 1.9-15.2x

• Field of view: 13.8°×8.4° / 24.2m×14.7m / 100m

• Display resolution: 1920x1080, 0.49", AMOLED

• Detection range: 900 m

• Minimum focus distance: 3 m

• Battery life: approximately 5 hours when paired with a phone or tablet (at 25 degrees Celsius)

• Device utilizes a 18650 battery, which is easily replaceable
• Operating temperature: -30°C - +45°C

• Weight: 331g

• Dimensions: 158.4 × 53.6 × 49.5mm

• Picture-in-picture function

• Hot track function

• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• USB-C connection

• Device bottom features a threaded mount for example with a tripod

• Integrated lens cover for the front lens

• Included in the package: Thermal camera, wrist strap, charging cable, user manual (also in Finnish)
