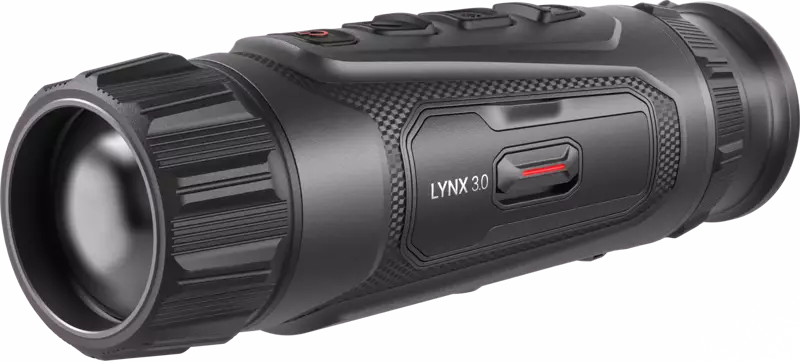

Hikmicro LYNX 3.0 LH35

Hikmicro Lynx LH35 3.0 Thermal Camera

The LH35 3.0 model features an exceptionally sensitive thermal module combined with a 35mm f/1.0 lens, offering a base magnification of 3.4x and an outstanding observation range of 1800 meters. This setup provides a 7.5° field of view (13.1m at 100 meters), which is an optimal balance between magnification power and coverage for professional surveillance and hunting in wide, open terrains. The system maintains NETD performance below 15mK at 25°C, ensuring exceptional thermal resolution at extreme distances.

Advanced Image Processing

HIKMICRO's patented shutterless imaging system (HSIS) eliminates annoying calibration breaks and maintains continuous target observation when every second counts. AI-powered Image Pro 3.0 and Zoom Pro algorithms enhance thermal image clarity and detail retention throughout the entire zoom range, producing professional-grade imaging in challenging conditions.

High-Resolution Display

The integrated 0.49-inch AMOLED display presents thermal images at a resolution of 1920x1080, providing a sharp and contrasting view for accurate target identification. The replaceable 18650 battery ensures up to 4.5 hours of continuous operation at -20°C.

Compact Size

Despite its advanced optical system, the LH35 3.0 maintains significant portability, weighing only 354.5 grams and measuring just 17cm in length.

Key Technical Specifications

VOx uncooled thermal sensor with 384x288 resolution and 12µm pixel pitch provides professional-grade thermal imaging at a 50 Hz frame rate, operating in a 8-14µm wavelength range for maximum atmospheric penetration.

The 35mm f/1.0 germanium lens offers a base magnification of 3.4x, extensible to 27.2x (8x digital zoom), with a manual focus ring adjustable from a minimum focus distance of 3.5 meters to an observation distance of 1800 meters.

AMOLED display technology includes a 0.49-inch 1920x1080 resolution viewfinder, with adjustable diopter correction (-5D - +3D), a 6mm exit pupil, and a 20mm eye relief for comfortable prolonged observation.

Versatile thermal palettes include Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, and Green Monochrome modes with adjustable brightness, contrast, and color bias settings (cold/warm) for optimal target visualization.

Maximum observation capability reaches a range of 1800 m, utilizing a 7 mm lens with a 5°x4.6° field of view (13.1m x 8.0m at 100m distance), delivering exceptional long-range performance for professional hunting and surveillance applications.

The HIKMICRO Shutterless Imaging System (HSIS) eliminates calibration interruptions while Image Pro 3.0 and Zoom Pro algorithms enhance image quality and detail retention throughout the entire magnification range.

Features:

• Pixel pitch: 12 µm

• Thermal sensor sensitivity: Less than 15mK

• Refresh rate: 50 Hz

• Image and video recording

• IP67

• Wi-Fi

• Internal memory: 64 GB EMMC

• Thermal sensor resolution: 384x288

• Focal length: 35 mm, F1.0

• Magnification: 3.4x - 27.2x

• Field of view: 17.5°x4.6°/13.1m x 8.0m/100m

• Display resolution: 1920x1080, 0.49", AMOLED

• Detection distance: 1800 m

• Minimum focus distance: 3.5 m

• Battery life: Approximately 5 hours when connected to a mobile phone or tablet (at 25 degrees Celsius)

• The device uses a 18650 battery, which is easily replaceable

• Operating temperature: -30°C - +45°C

• Weight: 354g

• Dimensions: 169.6 x 53.6 x 49.5mm

• Picture-in-picture function

• Hot track function

• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• USB-C connector

• Device base features a threaded mount for example for a tripod

• Integrated lens cover for the front lens

• Included in the package: Thermal camera, wrist strap, charging cable, charger, two batteries, and user manual (also available in Finnish)
