Leica Calonox 2 View LRF

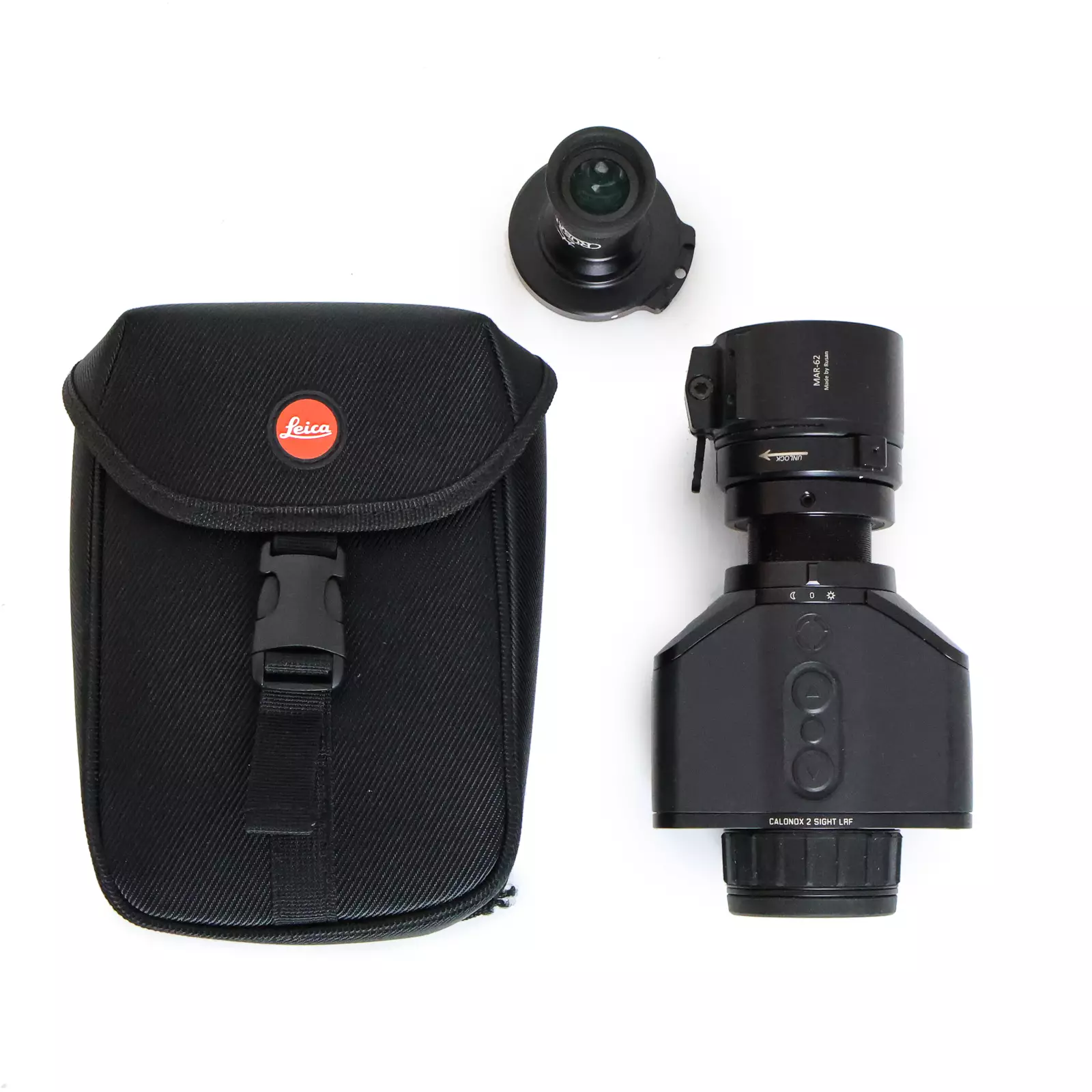

We have tested the Leica Calonox 2 View LRF clip-on device. The equipment is in like-new condition and comes with a Rusan Modular adapter of 62mm. This adapter allows you to attach the device directly to a scope with an outer diameter of 62mm. Additionally, the package includes a Rusan 22.5x viewing eyepiece with a modular fitting.

The Leica Calonox 2 Sight LRF is a top-of-the-line clip-on thermal sight that merges Leica’s optical expertise with advanced thermal imaging technology. Manufactured in Portugal, this device is compact, ergonomic, and easy to use. Its fully integrated laser rangefinder (LRF) enables precise distance measurements directly from the device or via a separate remote control.

The high-resolution thermal image remains sharp even in darkness, fog, and other challenging conditions. Featuring a high-quality European LYNRED sensor and Leica Image Optimization (LIO®) image processing, it delivers a contrast-rich and detailed image that aids in identifying targets.

The device is ready to use without the need for separate calibration, easy to install and transfer between riflescopes, and compatible with many rifle scopes. It is designed for hunters and nature observers who demand accuracy, durability, and reliable performance in all conditions.

Technical Specifications:

Device Type: Thermal Camera
Model: No. 1986
Order Number: 50512

Included in Delivery: Cordura carrying case, charging cable, Tenebraex protective cover (flip cover), carrying strap, cleaning cloth, quick guide

Sensor Type: VOx
Display Aperture: 0.49", active area 0.35"
Sensor Size: 640 × 480 pixels
Pixel Size: 12 ?m

Display Type: OLED
Display Resolution: 1280 × 960 pixels
Image Refresh Rate: 60 Hz

Lens Focal Length: 42 mm / 1.1
Thermal Sensitivity (NETD): < 40 mK

Optical Base Magnification: 2.5x
Digital Zoom: 1x / 2x / 3x / 4x

Field of View: 10.3° × 7.7°
18 × 13.5 m / 100 m

Diopter Adjustment: ±4 dpt

Detection Range / Resolution:
2,210 m / 2 px (2,417 yd / 2 px)

Recognition Range / Resolution:
770 m / 6 px (842 yd / 6 px)

Identification Range / Resolution:
390 m / 12 px (427 yd / 12 px)

Laser: Eye-safe invisible laser according to EN and FDA class 1 standards
Wavelength: 905 nm

Measuring Range:
– Highly reflective targets: 1,200 m (1,312 yd)
– Low reflective targets: 500 m (547 yd)

Video Output: Wi-Fi, USB-C
Video Recording: Yes
Connection: USB-C
Wireless Connectivity: Wi-Fi (2.4 GHz) + Bluetooth®
Internal Memory: 32 GB

Protection Rating: IP67, filled with nitrogen
Operating Temperature: -20 °C – +50 °C
Operating Temperature (charging): +10 °C – +30 °C

Battery Life: approximately 6 h
Battery: 3,500 mAh, non-removable

Charging Options: USB-C, mains adapter, power bank

Mounting Thread: M43x0.75
Tripod Thread: 1/4" DIN 4503 (1/4”), M4 standard thread

Dimensions (L × W × H): 139 × 110 × 61 mm
Weight (with battery): approximately 650 g

Shutter: Shutterless
